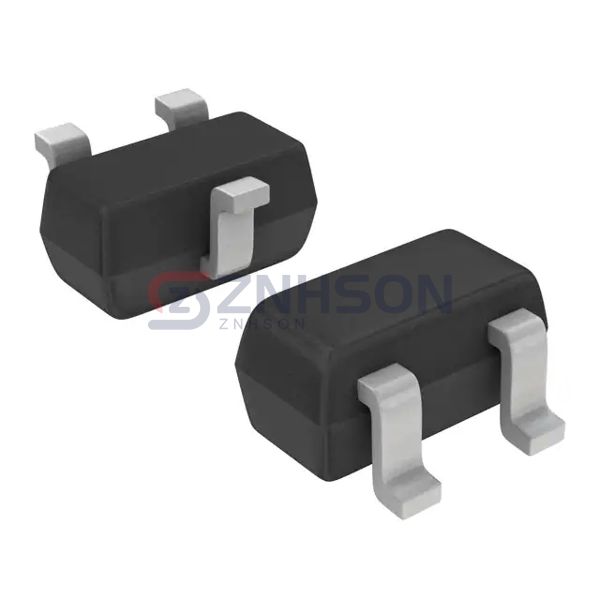

SBAW56TT1G
onsemi
onsemi
DIODE ARRAY GP 70V 200MA SC75
$0.05
Available to order
Reference Price (USD)
15,000+
$0.02100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the SBAW56TT1G by onsemi represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With onsemi's patented junction design, the SBAW56TT1G achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 70 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 6 ns
- Current - Reverse Leakage @ Vr: 2.5 µA @ 70 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
