SBC1694A
Winchester Interconnect
Winchester Interconnect
CONN BNC PLUG STR 75 OHM CRIMP
$9.48
Available to order
Reference Price (USD)
1+
$5.63000
10+
$5.40000
100+
$4.50000
250+
$3.93752
500+
$3.82500
1,000+
$3.26250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Winchester Interconnect's SBC1694A represents the cutting edge of Coaxial Connectors (RF) technology, engineered for precision connectivity in RF and microwave systems. This connector series features innovative contact design that maintains stable electrical performance through thousands of mating cycles. Our RF coaxial connectors are characterized by their weather-resistant construction, making them suitable for both indoor and outdoor installations. Key technical advantages include VSWR <1.25, operating temperature range -55 C to +125 C, and multiple mounting options. These components are extensively used in broadcast equipment (TV/radio transmitters), wireless network infrastructure (small cells, repeaters), military communications systems, and industrial automation controls. The SBC1694A variant specifically addresses the need for compact, high-density interconnects in modern phased array antenna systems.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Plug, Male Pin
- Contact Termination: Crimp
- Shield Termination: Crimp
- Impedance: 75Ohm
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: RG-6, Belden 1694A
- Fastening Type: Bayonet Lock
- Frequency - Max: 1 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: Weatherproof
- Center Contact Material: -
Related Products
Amphenol RF
901-9511-12SF
Molex
0734151002
Molex
73404-3010

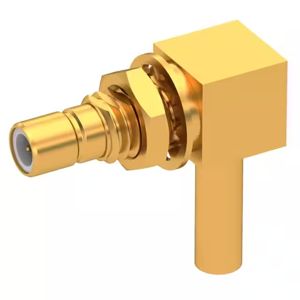

Radiall USA, Inc.
2106-1521-002

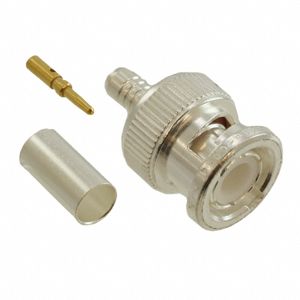

Amphenol RF
031-4326

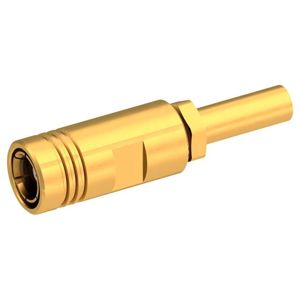

Radiall USA, Inc.
R114073000

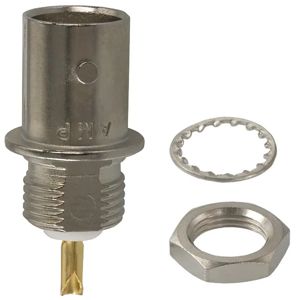

TE Connectivity AMP Connectors
5227715-3

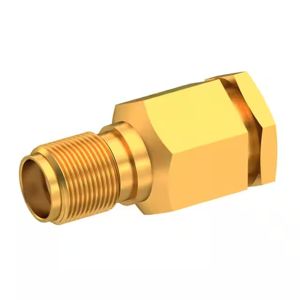

Radiall USA, Inc.
9202-1553-019

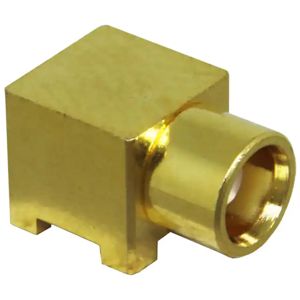

Linx Technologies Inc.
