SBH11-PBPC-D05-RA-BK
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 10POS 2.54MM
$0.63
Available to order
Reference Price (USD)
1+
$0.63000
10+
$0.59100
100+
$0.45330
500+
$0.39420
1,000+
$0.32522
5,000+
$0.28580
10,000+
$0.28470
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SBH11-PBPC-D05-RA-BK by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.358" (9.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-353082-2
Preci-Dip
882-70-056-20-001101
Preci-Dip
852-10-078-30-051101
TE Connectivity AMP Connectors
794077-2
Samtec Inc.
HTSW-106-07-T-D-LL-012
TE Connectivity AMP Connectors
9-103759-0-27
Samtec Inc.

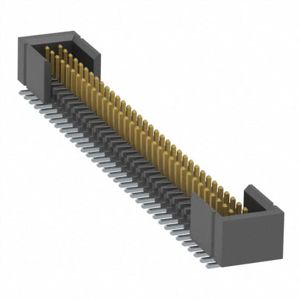

FTMH-113-03-L-DH-K-TR
