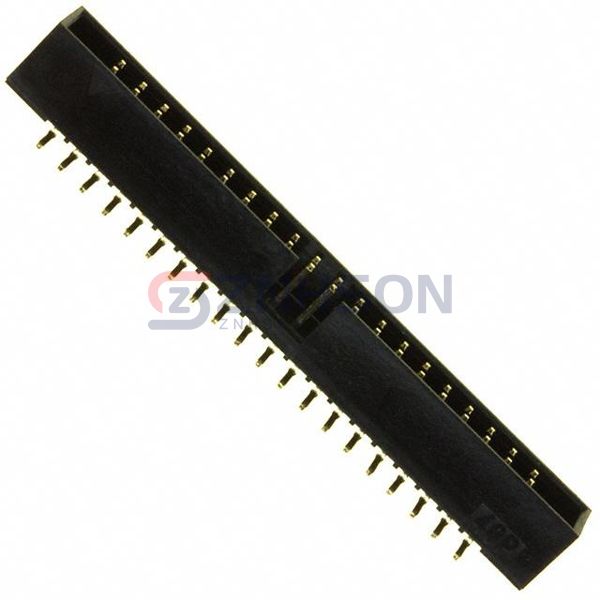

SBH21-NBPN-D20-SM-BK
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 40POS 2MM
$0.97
Available to order
Reference Price (USD)
1,000+
$0.97470
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the SBH21-NBPN-D20-SM-BK rectangular connector header by Sullins Connector Solutions. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the SBH21-NBPN-D20-SM-BK ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Sullins Connector Solutions for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-150-02-T-S
Würth Elektronik
66201221122
Preci-Dip
850-10-041-40-251101
Harwin Inc.
M80-MV311M2-04
TE Connectivity Erni
254589
Samtec Inc.
HTSW-103-08-TM-S-RA
Samtec Inc.
TSM-104-01-S-SH-002-P
Hirose Electric Co Ltd
DF13-8P-1.25H(50)
Samtec Inc.

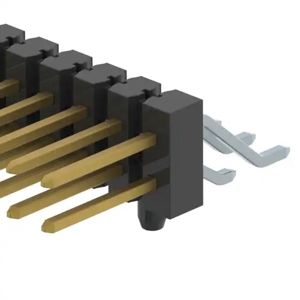

TSM-125-02-S-DH-A-P
