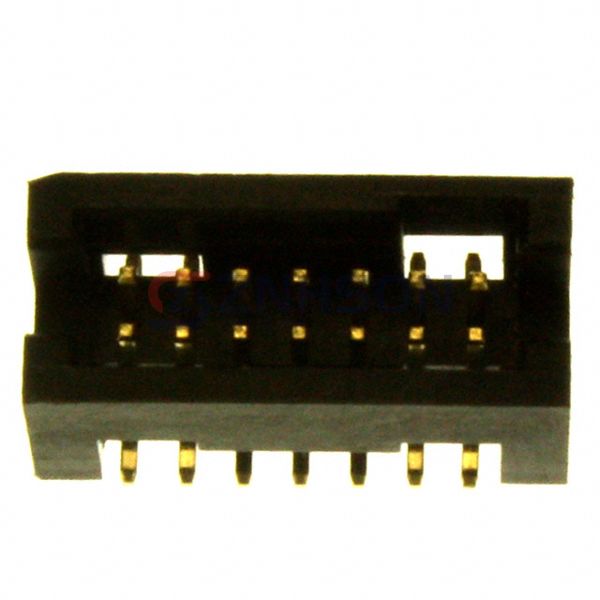

SBH31-NBPB-D07-SP-BK
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 14POS 1.27MM
$0.85
Available to order
Reference Price (USD)
1,000+
$0.84780
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the SBH31-NBPB-D07-SP-BK rectangular connector header from Sullins Connector Solutions for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Sullins Connector Solutions is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.213" (5.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
Related Products
Samtec Inc.
TFC-110-02-FM-D-A-K-TR
Hirose Electric Co Ltd
DF1E-8P-2.5DS(35)
Amphenol ICC (FCI)
75160-150-03LF
Samtec Inc.
TSM-104-02-L-SH-LC-P-TR
Amphenol ICC (FCI)
68021-132HLF
Samtec Inc.
TMM-111-03-G-D
Samtec Inc.
TMMH-110-01-T-D
Samtec Inc.
TSM-135-03-S-DV-A
Amphenol ICC (FCI)

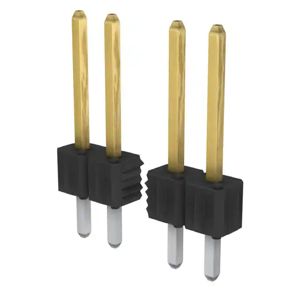

78511-136HLF
