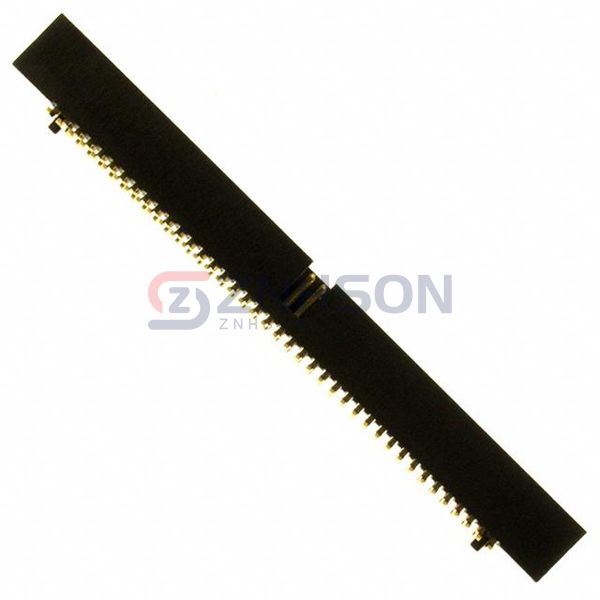

SBH41-NBPB-D40-SP-BK
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER SMD 80POS 1.27MM
$3.71
Available to order
Reference Price (USD)
1+
$3.71000
10+
$3.55800
100+
$2.96460
500+
$2.51992
1,000+
$2.14934
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SBH41-NBPB-D40-SP-BK by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 80
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.228" (5.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: Board Guide, Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
Related Products
Samtec Inc.
HTSW-109-08-L-S-RA
Samtec Inc.
TMM-105-01-LM-S
Amphenol ICC (FCI)
77311-118-29LF
Samtec Inc.
FTSH-108-01-L-DV-A-P-TR
Samtec Inc.
FTSH-111-01-LM-DH-C
Molex
0015477536
Samtec Inc.
FTSH-110-04-L-DV-P
Amphenol ICC (FCI)

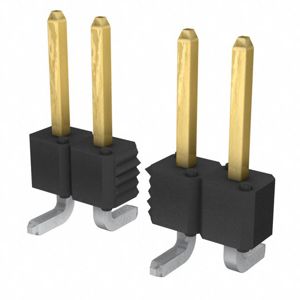

95293-801-08LF
Samtec Inc.

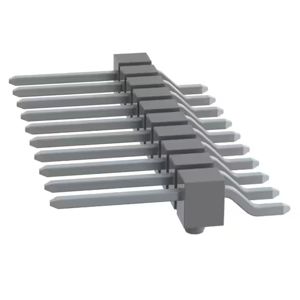

TSM-110-02-TM-SH-A-P-TR
