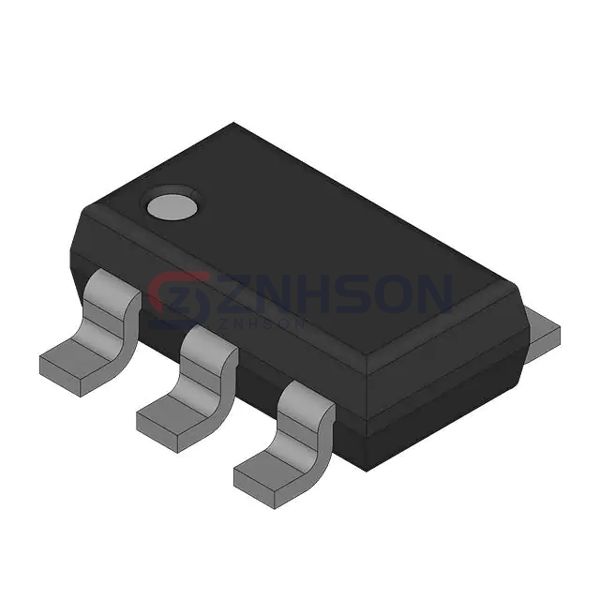

SBS804-TL-E
onsemi
onsemi
RECTIFIER 15V, 1A
$0.22
Available to order
Reference Price (USD)
1+
$0.22000
500+
$0.2178
1000+
$0.2156
1500+
$0.2134
2000+
$0.2112
2500+
$0.209
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing onsemi's SBS804-TL-E, a game-changing diode array in the Discrete Semiconductor Products category. Specifically engineered for high-frequency rectification, this component minimizes switching losses in SMPS and RF circuits. Its hermetically sealed package provides exceptional moisture resistance for outdoor applications like traffic signal systems and railway electronics. Trust onsemi's decades of semiconductor expertise embedded in every SBS804-TL-E for uncompromising performance.
Specifications
- Product Status: Obsolete
- Diode Configuration: 2 Independent
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 15 V
- Current - Average Rectified (Io) (per Diode): 1A
- Voltage - Forward (Vf) (Max) @ If: 400 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 15 ns
- Current - Reverse Leakage @ Vr: 500 µA @ 6 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package: 5-CPH
