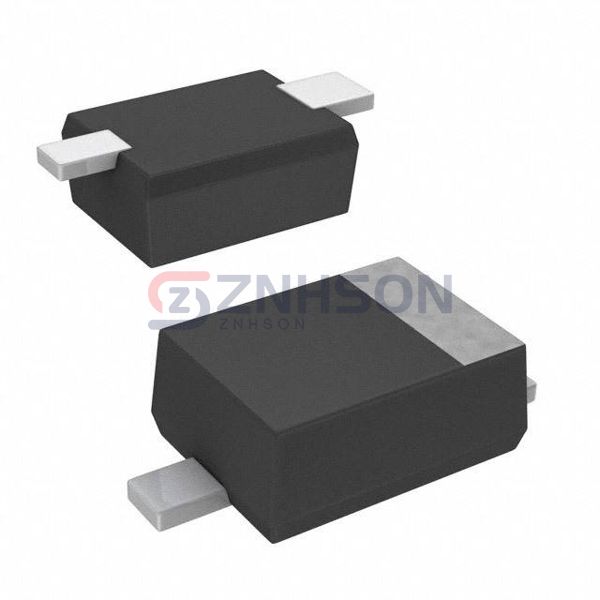

SD05
SMC Diode Solutions
SMC Diode Solutions
TVS ARRAY 5V SOD-323
$0.33
Available to order
Reference Price (USD)
1+
$0.33000
500+
$0.3267
1000+
$0.3234
1500+
$0.3201
2000+
$0.3168
2500+
$0.3135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SD05 TVS diode by SMC Diode Solutions offers unmatched protection against voltage transients. With its robust design and high surge current capacity, this diode is ideal for harsh environments. TVS diodes are commonly used in power management, RF systems, and LED lighting. They help prevent damage caused by sudden voltage surges, such as those from lightning or power fluctuations. For instance, the SD05 can safeguard solar inverters from overvoltage events. Choose SMC Diode Solutions for reliable and efficient circuit protection solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: 14.5V
- Current - Peak Pulse (10/1000µs): 24A (8/20µs)
- Power - Peak Pulse: 350W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 350pF @ 1MHz (Max)
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
