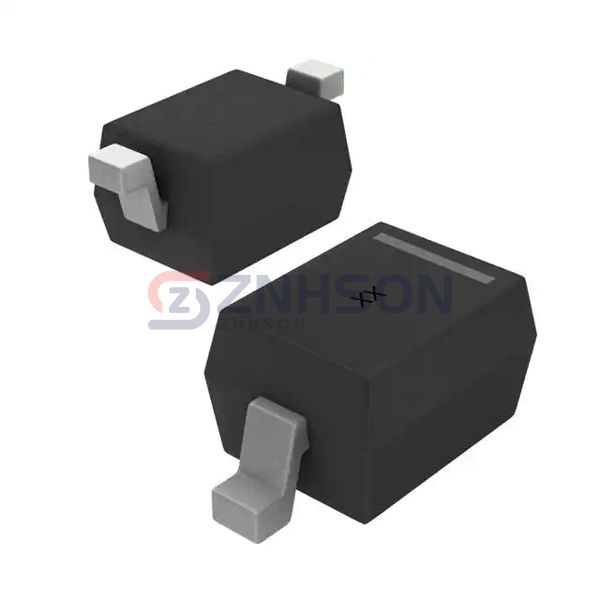

SD05CH-TP
Micro Commercial Co
Micro Commercial Co
TVS DIODE 5VWM SOD-323
$0.13
Available to order
Reference Price (USD)
1+
$0.12705
500+
$0.1257795
1000+
$0.124509
1500+
$0.1232385
2000+
$0.121968
2500+
$0.1206975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuit protection with the SD05CH-TP TVS diode from Micro Commercial Co. This diode excels in clamping transient voltages and ensuring system integrity. TVS diodes are crucial in applications ranging from consumer electronics to military hardware. They provide robust defense against voltage surges, such as those caused by lightning or switching loads. For example, the SD05CH-TP can protect military communication systems from transient interference. Micro Commercial Co offers top-grade TVS diodes engineered for superior performance and reliability.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: 15V
- Current - Peak Pulse (10/1000µs): 34A (8/20µs)
- Power - Peak Pulse: 500W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 200pF @ 1MHz (Max)
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
