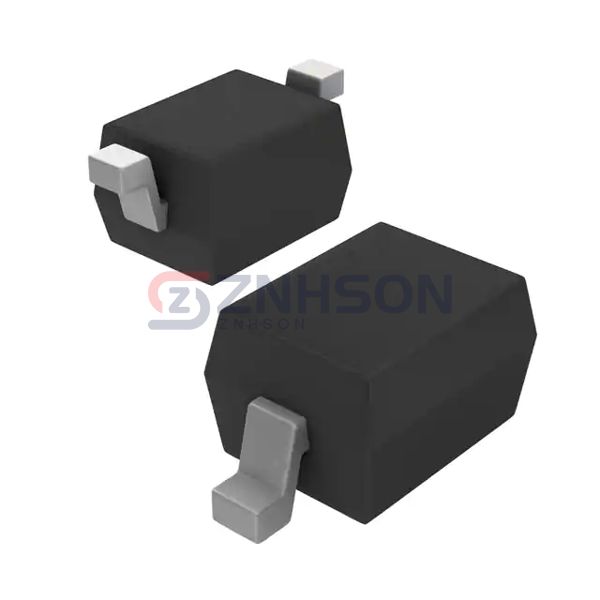

SD12-01FTG
Littelfuse Inc.
Littelfuse Inc.
TVS DIODE 12VWM 22.5VC SOD323
$0.41
Available to order
Reference Price (USD)
3,000+
$0.12069
6,000+
$0.11389
15,000+
$0.10708
30,000+
$0.09914
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SD12-01FTG by Littelfuse Inc. is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the SD12-01FTG can secure CAN bus lines in vehicles against voltage spikes. Rely on Littelfuse Inc. for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 12V (Max)
- Voltage - Breakdown (Min): -
- Voltage - Clamping (Max) @ Ipp: 22.5V
- Current - Peak Pulse (10/1000µs): 17A (8/20µs)
- Power - Peak Pulse: 450W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 150pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
