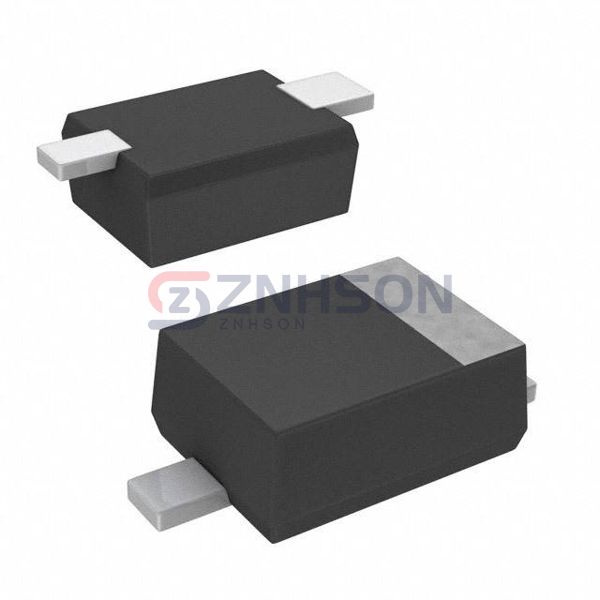

SD32305
SMC Diode Solutions
SMC Diode Solutions
TVS DIODE 5VWM 9.8VC SOD323
$0.45
Available to order
Reference Price (USD)
1+
$0.45000
500+
$0.4455
1000+
$0.441
1500+
$0.4365
2000+
$0.432
2500+
$0.4275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the SD32305 TVS diode by SMC Diode Solutions. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the SD32305 are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the SD32305 can shield HDMI ports in consumer electronics from voltage surges. Trust SMC Diode Solutions's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: 9.8V
- Current - Peak Pulse (10/1000µs): 1A (8/20µs)
- Power - Peak Pulse: 300W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 600pF @ 1MHz
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
