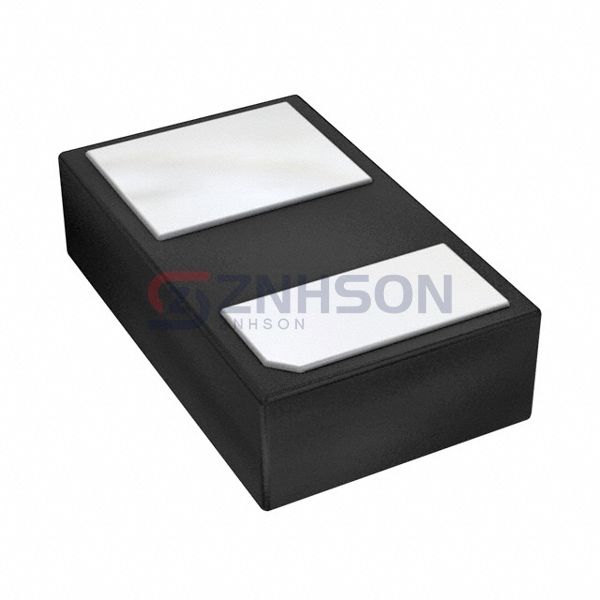

SDM1A40CSP-7
Diodes Incorporated
Diodes Incorporated
DIODE SCHOTTKY 40V 1A WLB1006
$0.09
Available to order
Reference Price (USD)
5,000+
$0.09557
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SDM1A40CSP-7 from Diodes Incorporated is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Diodes Incorporated's SDM1A40CSP-7 for superior performance and durability in demanding environments.
Specifications
- Product Status: Not For New Designs
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 560 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 75 µA @ 40 V
- Capacitance @ Vr, F: 35pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: 2-XDFN
- Supplier Device Package: X3-WLB1006-2
- Operating Temperature - Junction: -55°C ~ 150°C
