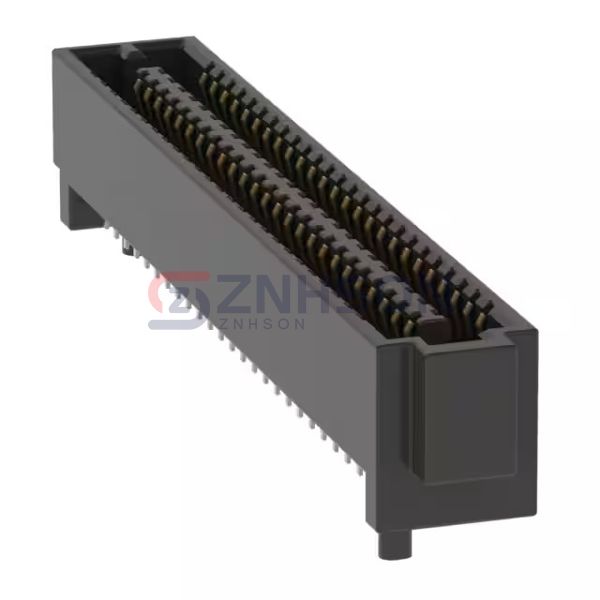

SEAF-25-06.5-S-04-2-A-K-TR

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN HD ARRAY RCPT 100P SMD GOLD

Datasheet:

SEAF-25-06.5-S-04-2-A-K-TR Datasheet

$11.60

Available to order

Reference Price (USD)

125+

$9.03000

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The SEAF-25-06.5-S-04-2-A-K-TR by Samtec Inc. is a high-performance rectangular connector designed for board-to-board applications. These connectors are part of the Arrays, Edge Type, and Mezzanine categories, offering reliable interconnections in compact spaces. With robust construction and precision engineering, they ensure secure and stable connections even in demanding environments. Ideal for high-density electronic assemblies, these connectors feature excellent electrical performance and durability. Common applications include telecommunications equipment, industrial automation systems, and consumer electronics. For instance, they are widely used in server motherboards, IoT devices, and automotive control units. Choose SEAF-25-06.5-S-04-2-A-K-TR for seamless connectivity and superior performance in your next project.

Specifications

Product Status: Active
Connector Type: High Density Array, Female
Number of Positions: 100
Pitch: 0.050" (1.27mm)
Number of Rows: 4
Mounting Type: Surface Mount
Features: Board Guide, Pick and Place
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Mated Stacking Heights: 8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, 19.5mm
Height Above Board: 0.258" (6.55mm)
