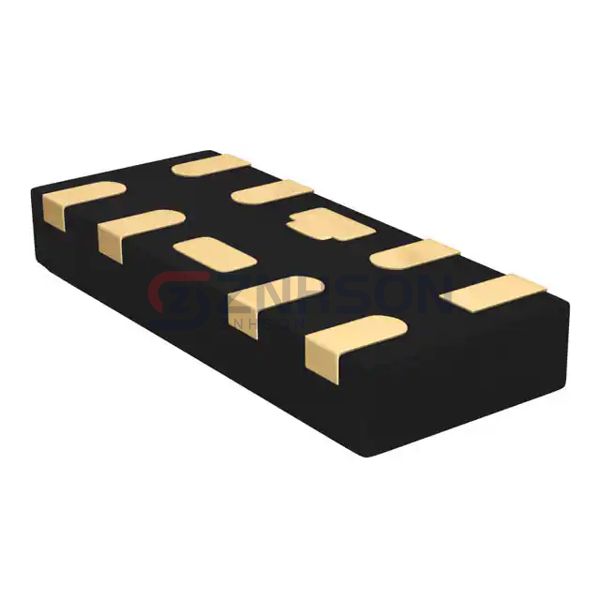

SESD1004Q4UG-0020-090
Littelfuse Inc.
Littelfuse Inc.
TVS DIODE 7VWM 9.2VC 1004/10DFN
$1.02
Available to order
Reference Price (USD)
25,000+
$0.42840
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the SESD1004Q4UG-0020-090 TVS diode by Littelfuse Inc.. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the SESD1004Q4UG-0020-090 are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the SESD1004Q4UG-0020-090 can shield HDMI ports in consumer electronics from voltage surges. Trust Littelfuse Inc.'s expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 4
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 7V (Max)
- Voltage - Breakdown (Min): 9V (Typ)
- Voltage - Clamping (Max) @ Ipp: 9.2V (Typ)
- Current - Peak Pulse (10/1000µs): 2A (8/20µs)
- Power - Peak Pulse: -
- Power Line Protection: No
- Applications: Automotive, HDMI
- Capacitance @ Frequency: 0.2pF @ 3GHz
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-XFDFN
- Supplier Device Package: 1004/10DFN (2.5x1.0)
