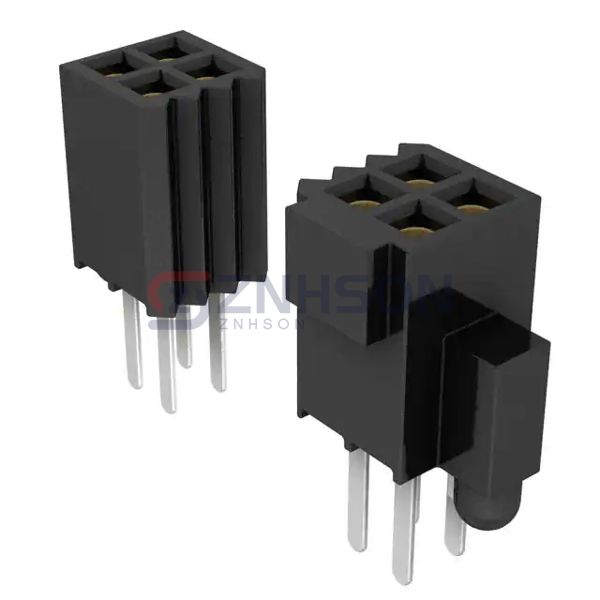

SFM-110-01-F-D-A

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN RCPT 20POS 0.05 GOLD PCB

Datasheet:

SFM-110-01-F-D-A Datasheet

$6.30

Available to order

Reference Price (USD)

$3.90000

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Optimize your electronic assemblies with SFM-110-01-F-D-A Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Samtec Inc. connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.

Specifications

Product Status: Active
Connector Type: Receptacle
Contact Type: Female Socket
Style: Board to Board or Cable
Number of Positions: 20
Number of Positions Loaded: All
Pitch - Mating: 0.050" (1.27mm)
Number of Rows: 2
Row Spacing - Mating: 0.050" (1.27mm)
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Insulation Color: Black
Insulation Height: 0.180" (4.57mm)
Contact Length - Post: 0.120" (3.05mm)
Operating Temperature: -55°C ~ 125°C
Material Flammability Rating: UL94 V-0
Contact Finish - Post: Tin
Mated Stacking Heights: 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Ingress Protection: -
Features: Board Guide
Current Rating (Amps): 3.2A per Contact
Voltage Rating: 250VAC
