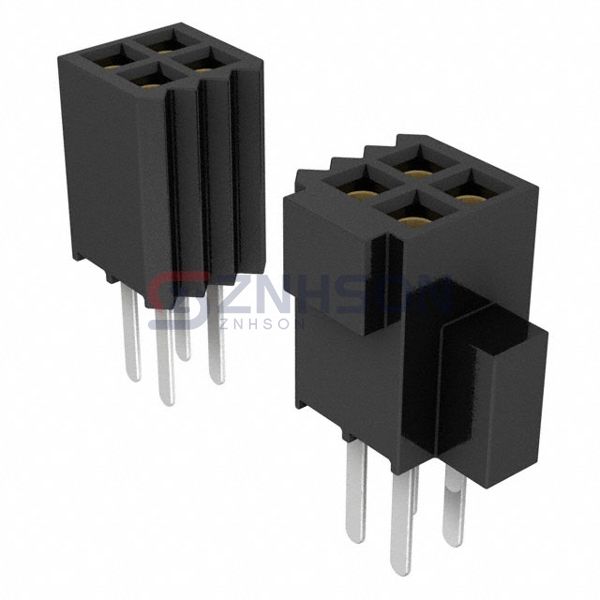

SFM-120-01-S-D

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN RCPT 40POS 0.05 GOLD PCB

Datasheet:

SFM-120-01-S-D Datasheet

$14.97

Available to order

Reference Price (USD)

$7.78000

19+

$7.19632

114+

$6.02947

513+

$5.05700

1,007+

$4.86250

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Achieve seamless connectivity with SFM-120-01-S-D Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Samtec Inc. connectors are designed to meet the evolving needs of modern technology.

Specifications

Product Status: Active
Connector Type: Receptacle
Contact Type: Female Socket
Style: Board to Board or Cable
Number of Positions: 40
Number of Positions Loaded: All
Pitch - Mating: 0.050" (1.27mm)
Number of Rows: 2
Row Spacing - Mating: 0.050" (1.27mm)
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Insulation Color: Black
Insulation Height: 0.180" (4.57mm)
Contact Length - Post: 0.120" (3.05mm)
Operating Temperature: -55°C ~ 125°C
Material Flammability Rating: UL94 V-0
Contact Finish - Post: Tin
Mated Stacking Heights: 6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Ingress Protection: -
Features: -
Current Rating (Amps): 3.2A per Contact
Voltage Rating: 250VAC
