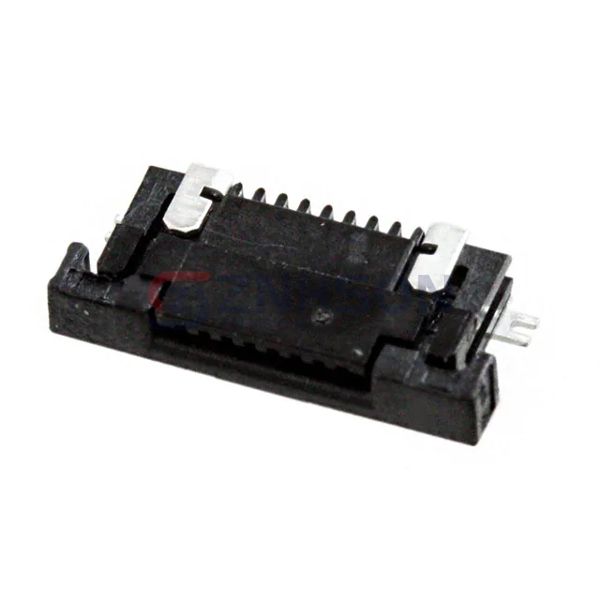

SFV8R-2STE1HLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN FFC FPC TOP 8POS 0.50MM R/A
$0.45
Available to order
Reference Price (USD)
3,000+
$0.27990
6,000+
$0.27057
9,000+
$0.25191
15,000+
$0.24818
30,000+
$0.24258
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with Amphenol ICC (FCI)'s SFV8R-2STE1HLF FFC/FPC Connectors the epitome of precision and adaptability. These connectors feature a unique combination of bend resistance, high pin density, and corrosion-resistant materials, ensuring longevity in dynamic environments. The SFV8R-2STE1HLF is particularly suited for AR/VR headsets, automotive infotainment, and military communications. With Amphenol ICC (FCI)'s patented contact technology, signal loss is minimized even at high frequencies. Whether for prototyping or mass production, SFV8R-2STE1HLF offers a scalable solution for all your flexible connection requirements.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top
- Number of Positions: 8
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.071" (1.80mm)
- Locking Feature: Flip Lock
- Cable End Type: Notched or Tabbed
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Polyamide (PA), Nylon, Glass Filled, Halogen Free
- Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
