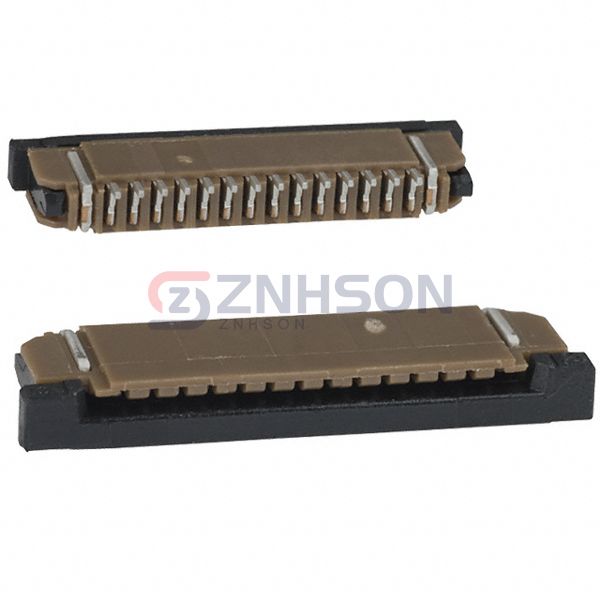

SFW14R-2STE1LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN FFC FPC TOP 14POS 1MM R/A
$1.25
Available to order
Reference Price (USD)
2,000+
$0.52710
4,000+
$0.50953
6,000+
$0.49196
10,000+
$0.46736
14,000+
$0.45682
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the SFW14R-2STE1LF FFC/FPC Connectors from Amphenol ICC (FCI), where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The SFW14R-2STE1LF series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Amphenol ICC (FCI)'s eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for SFW14R-2STE1LF when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top
- Number of Positions: 14
- Pitch: 0.039" (1.00mm)
- Termination: Kinked Pin
- FFC, FCB Thickness: 0.30mm, 0.33mm
- Height Above Board: 0.106" (2.70mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight, Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Polyphenylene Sulfide (PPS), Glass Filled
- Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 100V
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
