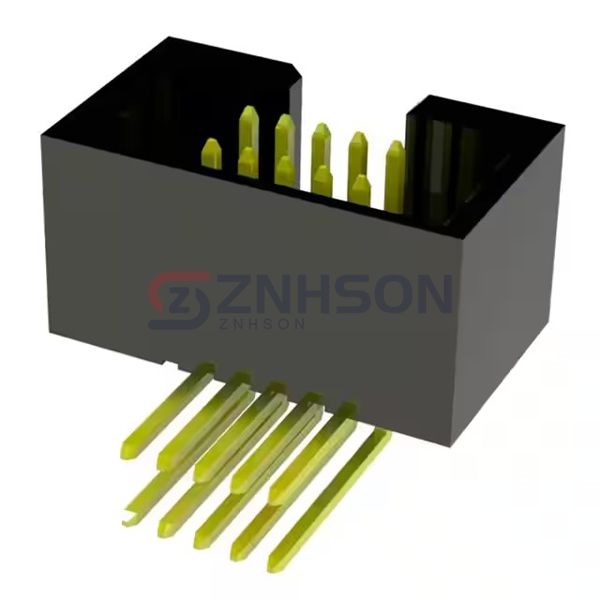

SHTSR-613-D-02-F-LF
Major League Electronics
Major League Electronics
.050 x. 100 Shroud
$0.93
Available to order
Reference Price (USD)
1+
$0.93000
500+
$0.9207
1000+
$0.9114
1500+
$0.9021
2000+
$0.8928
2500+
$0.8835
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SHTSR-613-D-02-F-LF by Major League Electronics is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Major League Electronics delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.320" (8.13mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
Related Products
Samtec Inc.
T1M-05-F-SH-L
Samtec Inc.
HTSW-207-07-SS-S
Preci-Dip
800-10-027-20-101101
Hirose Electric Co Ltd
HIF3BA-20PA-2.54DSA(63)
Adam Tech
15SH-A-05-TS-SMT-T/R
Samtec Inc.
TMMH-108-01-G-DV-A
Samtec Inc.
FTMH-106-02-L-DV-TR
Samtec Inc.

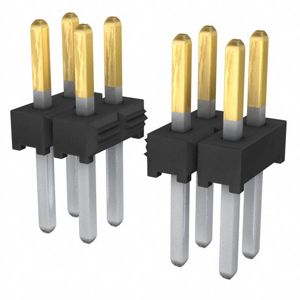

TMM-110-04-L-D
TE Connectivity AMP Connectors

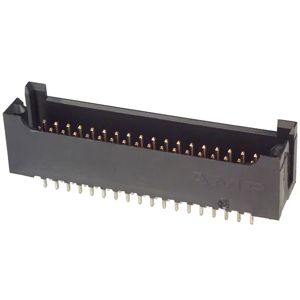

102692-3
