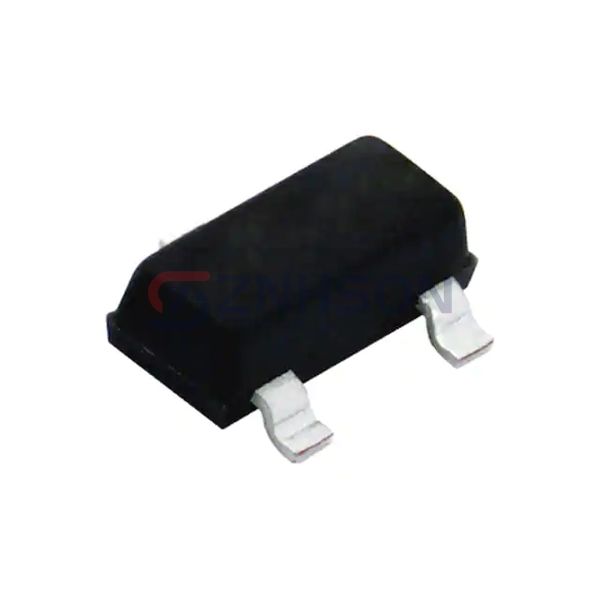

SI2301CDS-T1-BE3
Vishay Siliconix
Vishay Siliconix
P-CHANNEL 20-V (D-S) MOSFET
$0.41
Available to order
Reference Price (USD)
1+
$0.41000
500+
$0.4059
1000+
$0.4018
1500+
$0.3977
2000+
$0.3936
2500+
$0.3895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power electronics with the SI2301CDS-T1-BE3 single MOSFET from Vishay Siliconix. As a key player in the Discrete Semiconductor Products market, this component delivers high voltage tolerance and minimal power loss. Ideal for applications like solar inverters, electric vehicles, and robotics, the SI2301CDS-T1-BE3 combines cutting-edge technology with Vishay Siliconix's renowned craftsmanship. Experience superior performance in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2.3A (Ta), 3.1A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 112mOhm @ 2.8A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 405 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 860mW (Ta), 1.6W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-3 (TO-236)
- Package / Case: TO-236-3, SC-59, SOT-23-3
Related Products
Texas Instruments
CSD17318Q2
Vishay Siliconix
SISS60DN-T1-GE3
Texas Instruments
TPIC1501ADWR
onsemi
NDD03N60Z-1G
STMicroelectronics
STP22N60DM6
Microchip Technology
MSC025SMA120S
Torex Semiconductor Ltd
XP151A13A0MR
Rohm Semiconductor
RRS040P03FRATB
Infineon Technologies

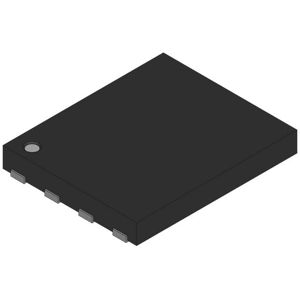

BSC882N03LSG
