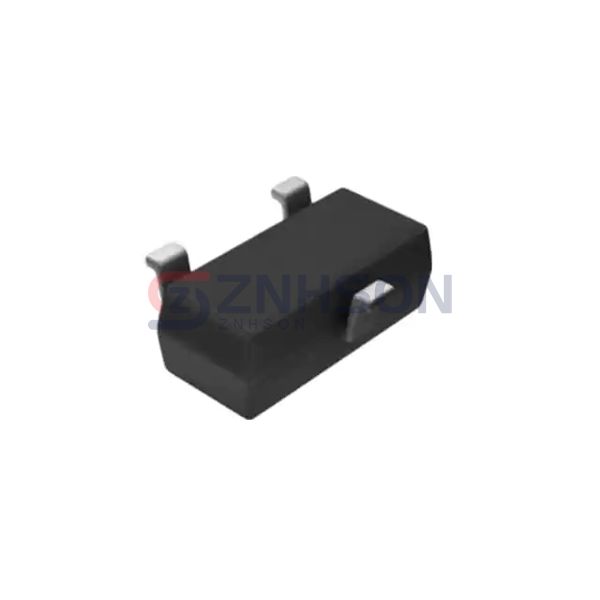

SI2301S-2.3A
MDD
MDD
MOSFET SOT-23 P Channel 20V
$0.20
Available to order
Reference Price (USD)
1+
$0.19850
500+
$0.196515
1000+
$0.19453
1500+
$0.192545
2000+
$0.19056
2500+
$0.188575
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SI2301S-2.3A single MOSFET from MDD is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the SI2301S-2.3A is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 3.3V, 4.5V
- Rds On (Max) @ Id, Vgs: 90mOhm @ 3A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6.6 nC @ 10 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 330 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 225mW (Ta)
- Operating Temperature: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23
- Package / Case: TO-236-3, SC-59, SOT-23-3
