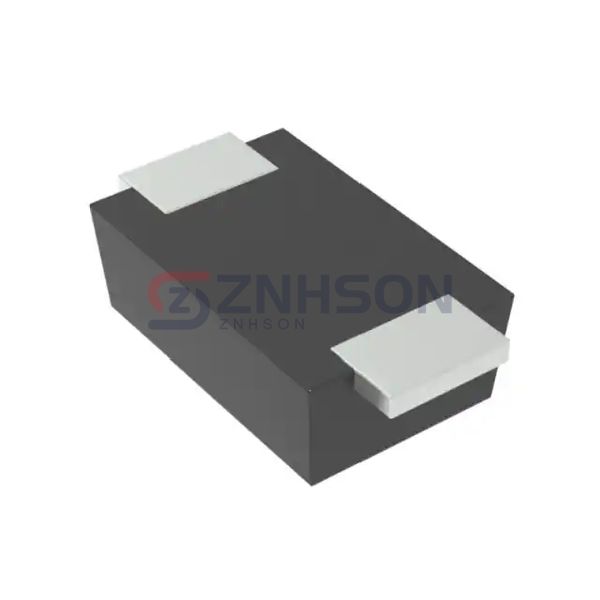

SJD12A70L01
YAGEO
YAGEO
TVS ESD, SOD-123S, 70V, 113V, RE
$0.42
Available to order
Reference Price (USD)
1+
$0.42000
500+
$0.4158
1000+
$0.4116
1500+
$0.4074
2000+
$0.4032
2500+
$0.399
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SJD12A70L01 TVS diode by YAGEO offers unmatched protection against voltage transients. With its robust design and high surge current capacity, this diode is ideal for harsh environments. TVS diodes are commonly used in power management, RF systems, and LED lighting. They help prevent damage caused by sudden voltage surges, such as those from lightning or power fluctuations. For instance, the SJD12A70L01 can safeguard solar inverters from overvoltage events. Choose YAGEO for reliable and efficient circuit protection solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 70V
- Voltage - Breakdown (Min): 77.8V
- Voltage - Clamping (Max) @ Ipp: 113V
- Current - Peak Pulse (10/1000µs): 1.8A
- Power - Peak Pulse: 200W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-219AA
- Supplier Device Package: SOD-123S
