SM05
MDD
MDD
TVS DIODE 5VWM 9.8VC SOT23
$0.18
Available to order
Reference Price (USD)
1+
$0.17550
500+
$0.173745
1000+
$0.17199
1500+
$0.170235
2000+
$0.16848
2500+
$0.166725
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the SM05 TVS diode by MDD. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the SM05 are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the SM05 can shield HDMI ports in consumer electronics from voltage surges. Trust MDD's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 2
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6V
- Voltage - Clamping (Max) @ Ipp: -
- Current - Peak Pulse (10/1000µs): 1A (8/20µs)
- Power - Peak Pulse: 350W
- Power Line Protection: Yes
- Applications: General Purpose
- Capacitance @ Frequency: 300pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23
- Supplier Device Package: SOT-23
Related Products
Vishay General Semiconductor - Diodes Division
P4SMA13A-E3/61
Microchip Technology
MSMBG10AE3
STMicroelectronics
SMAJ10CA-TR
Vishay General Semiconductor - Diodes Division
P4SMA20A-E3/5A
Microchip Technology
JANTXV1N5665A
YAGEO
SMBJ14CA-AT/TR13
Littelfuse Inc.
1.5KE480A-B
Littelfuse Inc.
P4KE36A-B
Central Semiconductor Corp

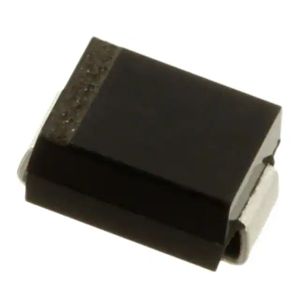

1SMB5.0CA TR13 PBFREE
