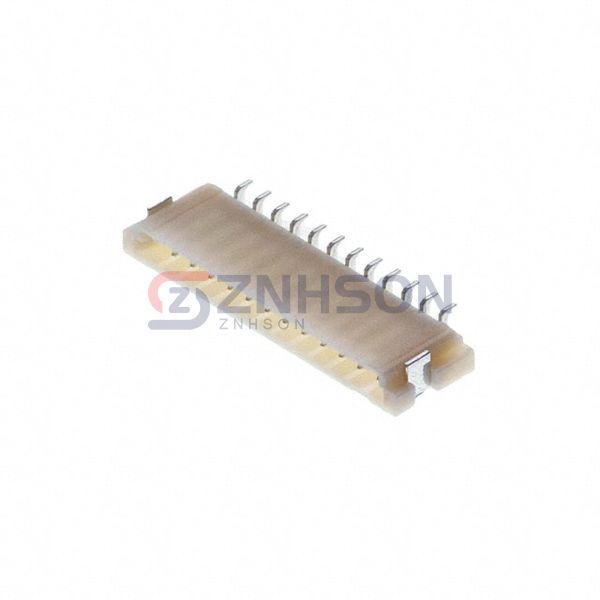

SM12B-SHLS-TF(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD R/A 12POS 1MM
$1.18
Available to order
Reference Price (USD)
4,500+
$0.57657
9,000+
$0.52885
13,500+
$0.51693
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the SM12B-SHLS-TF(LF)(SN) rectangular connector header from JST Sales America Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. JST Sales America Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Outer Shroud Contact
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.069" (1.75mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 50V
Related Products
TE Connectivity AMP Connectors
2029104-2
Mill-Max Manufacturing Corp.
802-10-030-62-001000
Samtec Inc.
T1M-07-F-SH-L
TE Connectivity AMP Connectors
87232-2
Samtec Inc.
TSM-109-01-T-SH-A-P-TR
Würth Elektronik
66200621022
Samtec Inc.

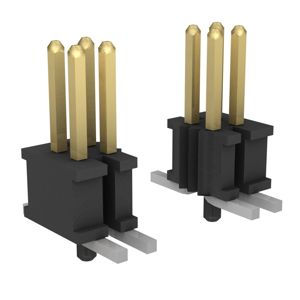

FTSH-140-04-F-DV-A-P-TR
TE Connectivity AMP Connectors
1-794630-2
Samtec Inc.

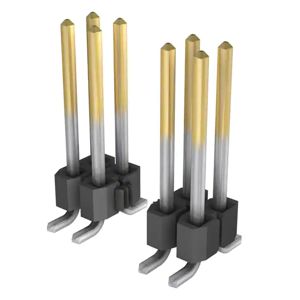

TSM-105-03-LM-DV-P-TR
