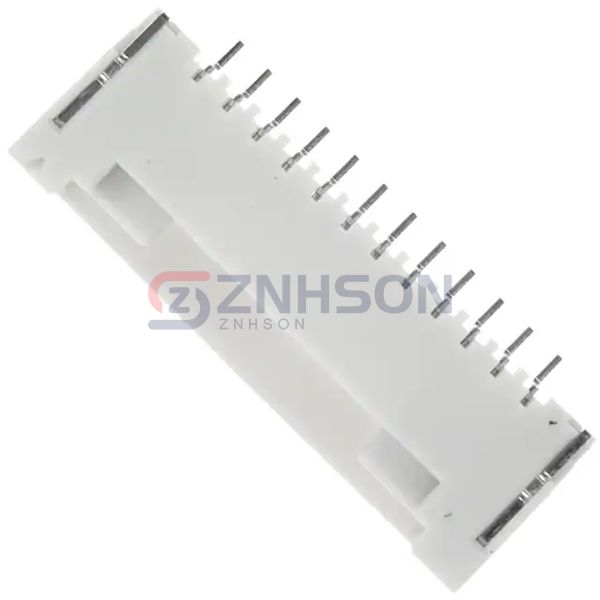

SM12B-ZESS-TB(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD R/A 12POS 1.5MM
$1.15
Available to order
Reference Price (USD)
1,000+
$0.61985
2,000+
$0.58111
3,000+
$0.56174
5,000+
$0.54237
10,000+
$0.51525
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SM12B-ZESS-TB(LF)(SN) by JST Sales America Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. JST Sales America Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Outer Shroud Contact
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.228" (5.80mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 100V
Related Products
Samtec Inc.
STMM-105-02-S-D-SM
Preci-Dip
894-80-060-20-002101
Samtec Inc.
TFM-115-22-S-D-A-TR
Sullins Connector Solutions
NREC032SABC-M30RC
TE Connectivity AMP Connectors
104363-5
Samtec Inc.
FTE-131-01-G-DH
Samtec Inc.
TSW-103-14-T-S
Samtec Inc.
FTSH-105-01-F-DH
Samtec Inc.

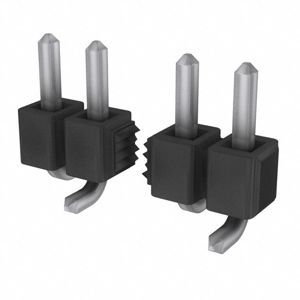

TSM-112-04-TM-SV
