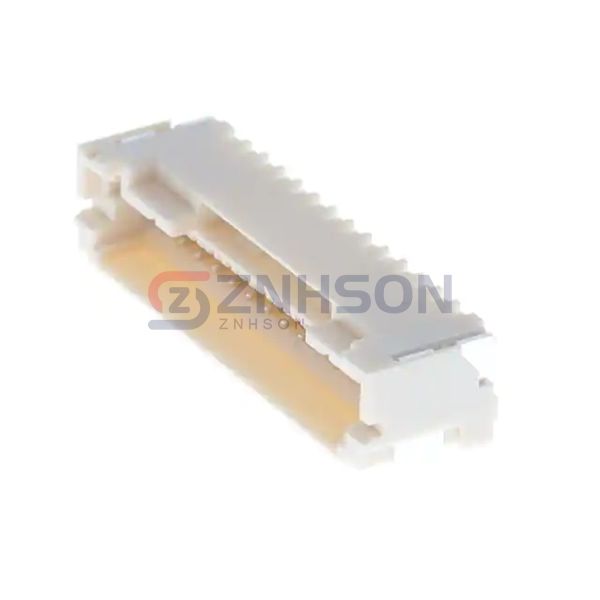

SM14B-ZESS-TB(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD R/A 14POS 1.5MM
$1.27
Available to order
Reference Price (USD)
1,000+
$0.68349
2,000+
$0.64078
3,000+
$0.61941
5,000+
$0.59805
10,000+
$0.56815
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the SM14B-ZESS-TB(LF)(SN) rectangular connector header from JST Sales America Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the SM14B-ZESS-TB(LF)(SN) adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. JST Sales America Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Outer Shroud Contact
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 14
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.228" (5.80mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 100V
Related Products
Samtec Inc.
TMM-113-02-G-D
Preci-Dip
356-V3-120-00-014101
Amphenol ICC (FCI)
77313-189-06LF
Amphenol ICC (FCI)
68020-164HLF
Samtec Inc.

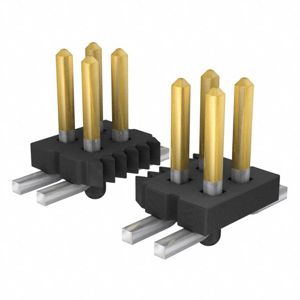

FTS-107-01-F-DV-A-P
Samtec Inc.

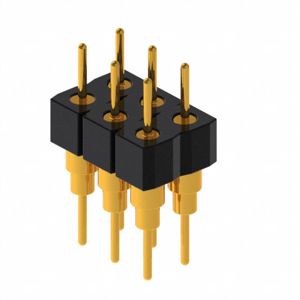

BBD-103-G-A
Harwin Inc.

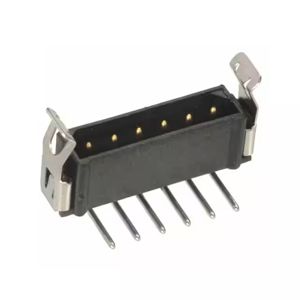

B5743-103-M-L-1
Amphenol ICC (FCI)

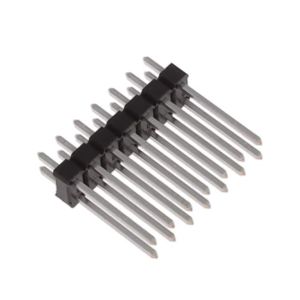

77313-485-14LF
Samtec Inc.

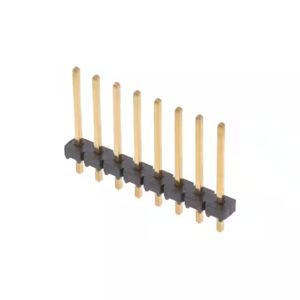

MTLW-108-08-G-S-380
