SM15B-NSHSS-TB(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD R/A 15POS 1MM
$1.28
Available to order
Reference Price (USD)
1,500+
$0.64496
3,000+
$0.62346
7,500+
$0.60197
10,500+
$0.57187
15,000+
$0.55897
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SM15B-NSHSS-TB(LF)(SN) by JST Sales America Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. JST Sales America Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 15
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.173" (4.40mm)
- Contact Shape: -
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 50V
Related Products
Samtec Inc.
TSM-108-02-S-DH-A
Samtec Inc.
TMM-150-01-G-D-RA
Samtec Inc.
HTSW-112-14-G-S
TE Connectivity AMP Connectors

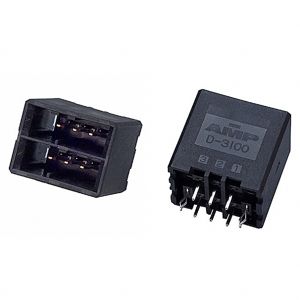

1-178141-3
Samtec Inc.

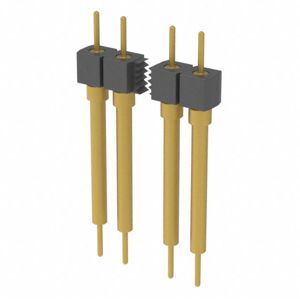

BBS-115-G-C
TE Connectivity AMP Connectors

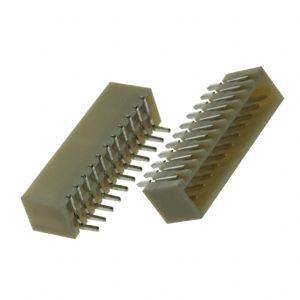

6-1775444-1
Sullins Connector Solutions

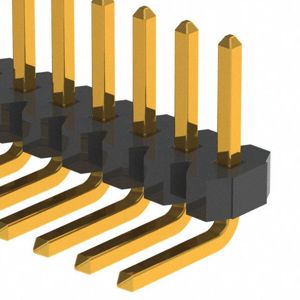

GRPB231VWCN-RC
