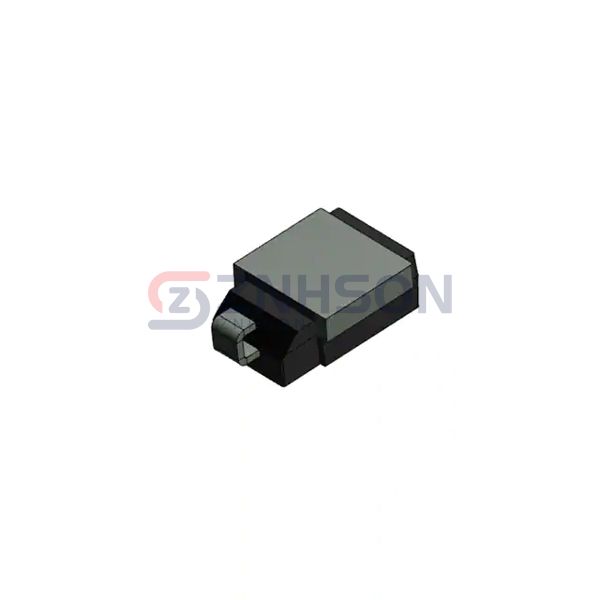

SM8S22AH
Eaton - Electronics Division
Eaton - Electronics Division
TVS DIODE 22VWM 35.5VC UNI
$2.99
Available to order
Reference Price (USD)
1+
$2.99000
500+
$2.9601
1000+
$2.9302
1500+
$2.9003
2000+
$2.8704
2500+
$2.8405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SM8S22AH from Eaton - Electronics Division is a high-performance TVS diode designed for robust circuit protection. These diodes are essential for safeguarding sensitive electronic components from voltage spikes and transient events. With fast response times and high surge capabilities, the SM8S22AH ensures reliable performance in demanding environments. TVS diodes are widely used in telecommunications, automotive, and industrial applications. For instance, they protect data lines in routers and prevent damage from electrostatic discharge (ESD) in automotive electronics. Choose Eaton - Electronics Division's SM8S22AH for superior protection and durability in your circuits.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 186A
- Power - Peak Pulse: 6600W (6.6kW)
- Power Line Protection: No
- Applications: Automotive, Telecom
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-218AB
- Supplier Device Package: DO-218AB
Related Products
Littelfuse Inc.
SMA6J8.0CA
Panjit International Inc.
1.5KE150A_R2_00001
Eaton - Electronics Division
SMCJE36A
Microchip Technology
MA15KP64A
Microchip Technology
SMCJ13AE3/TR13
Vishay General Semiconductor - Diodes Division
SA16CAHE3/54
Panjit International Inc.
P6KE43AS_AY_00001
Microchip Technology
MRT100KP64AE3
Littelfuse Inc.

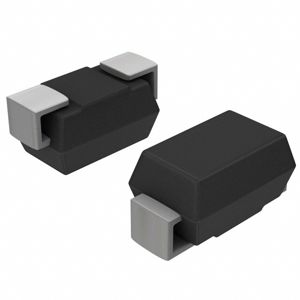

SMA6J13CA
