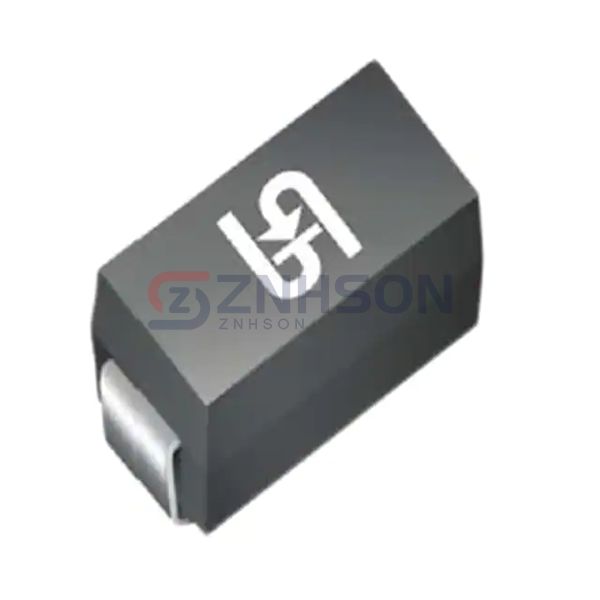

SMAJ22CAH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 22VWM 35.5VC DO214AC
$0.13
Available to order
Reference Price (USD)
1+
$0.13299
500+
$0.1316601
1000+
$0.1303302
1500+
$0.1290003
2000+
$0.1276704
2500+
$0.1263405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMAJ22CAH by Taiwan Semiconductor Corporation is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the SMAJ22CAH can secure CAN bus lines in vehicles against voltage spikes. Rely on Taiwan Semiconductor Corporation for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 11.3A
- Power - Peak Pulse: 400W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
