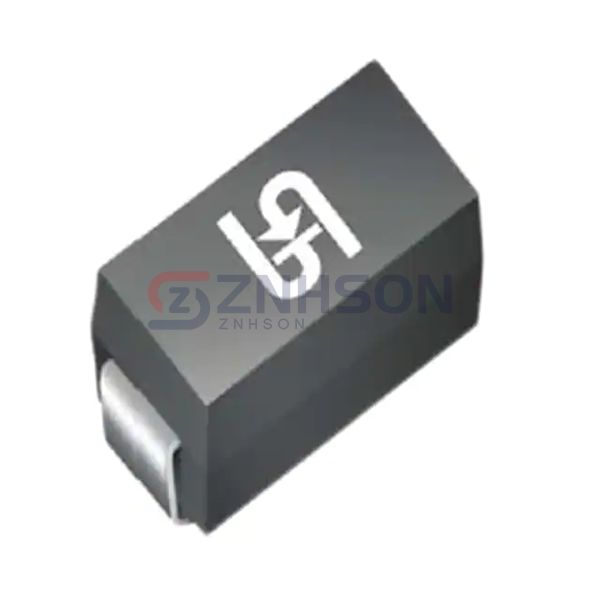

SMAJ70CHR3G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 70VWM 125VC DO214AC
$0.51
Available to order
Reference Price (USD)
1+
$0.51000
500+
$0.5049
1000+
$0.4998
1500+
$0.4947
2000+
$0.4896
2500+
$0.4845
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMAJ70CHR3G by Taiwan Semiconductor Corporation is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the SMAJ70CHR3G can secure CAN bus lines in vehicles against voltage spikes. Rely on Taiwan Semiconductor Corporation for cutting-edge TVS diode solutions.
Specifications
- Product Status: Discontinued at Digi-Key
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 70V
- Voltage - Breakdown (Min): 77.8V
- Voltage - Clamping (Max) @ Ipp: 125V
- Current - Peak Pulse (10/1000µs): 3.2A
- Power - Peak Pulse: 400W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
Related Products
Comchip Technology
TV30C600J-G
Comchip Technology
ATV30C190J-HF
Nexperia USA Inc.
MMBZ6V2AL,215
Taiwan Semiconductor Corporation
BZW04-239BH
STMicroelectronics
BZW50-33BRL
Bourns Inc.
SMCJ16CA-Q
Diodes Incorporated

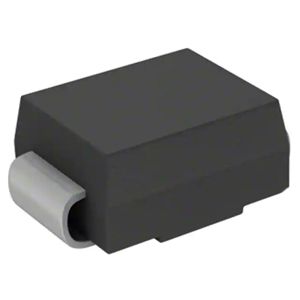

SMBJ7.0A-13-F
Semtech Corporation
JANTX1N6139AUS.TR
Diodes Incorporated

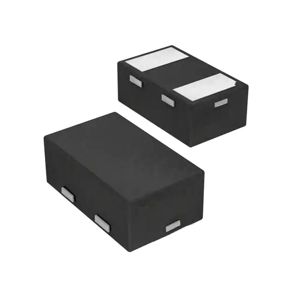

D15V0X1B2LPQ-7B
