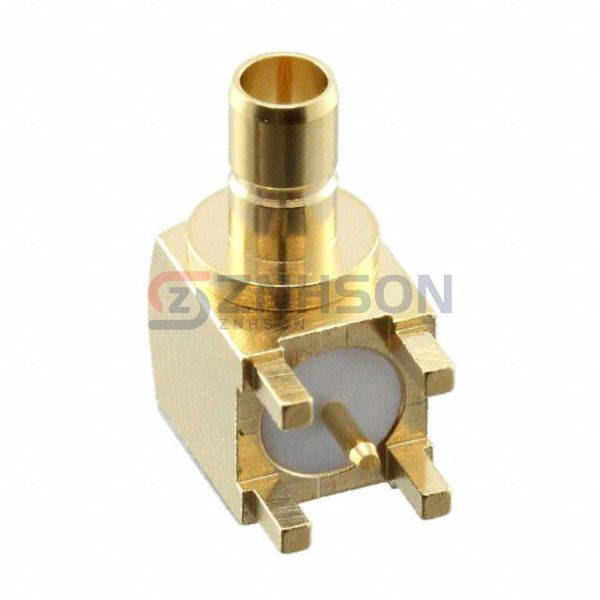

SMB7H-J-P-H-RA-TH1
Samtec Inc.
Samtec Inc.
CONN SMB JACK R/A 75 OHM PCB
$9.71
Available to order
Reference Price (USD)
1+
$8.26000
10+
$7.89800
25+
$7.18000
50+
$6.82100
100+
$6.64150
250+
$5.92352
500+
$5.56450
1,000+
$4.91830
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMB7H-J-P-H-RA-TH1 from Samtec Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The SMB7H-J-P-H-RA-TH1 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
