SMB7H-J-P-H-ST-TH1
Samtec Inc.
Samtec Inc.
CONN SMB JACK R/A 75 OHM PCB
$4.35
Available to order
Reference Price (USD)
1+
$3.70000
10+
$3.55200
25+
$3.25600
50+
$3.10800
100+
$2.96000
250+
$2.59000
500+
$2.51600
1,000+
$2.14600
2,500+
$1.99800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMB7H-J-P-H-ST-TH1 by Samtec Inc. redefines performance benchmarks for Coaxial Connectors (RF). These precision connectors utilize air dielectric designs where applicable to maximize high-frequency performance. The product family offers exceptional mechanical stability with torque retention features that prevent loosening in vibration-prone environments. Specialized versions include phase-stable, hermetic, and ultra-miniature designs. Dominant applications encompass: Microwave point-to-point links Satellite payload interconnects MRI coil interfaces Spectrum monitoring systems. The SMB7H-J-P-H-ST-TH1 stands out with its ultra-low PIM characteristics (<-160dBc), making it the connector of choice for modern multi-operator cellular infrastructure deployments.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
Related Products
Pasternack
PE45594
Amphenol SV Microwave
1211-40087
Molex
0734151699
Cinch Connectivity Solutions Johnson
145-0701-602
Linx Technologies Inc.
CONBNC001
TE Connectivity AMP Connectors
1-1337626-0
RF Industries
RSA-3252-B
Amphenol RF

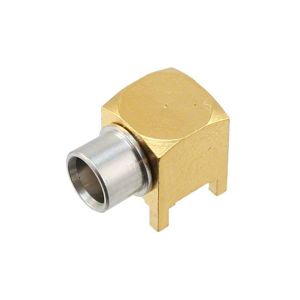

919-NM119J-51A
Big Cat Cables

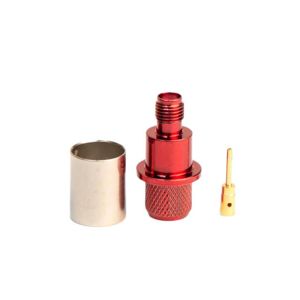

BC-302-400-RD
