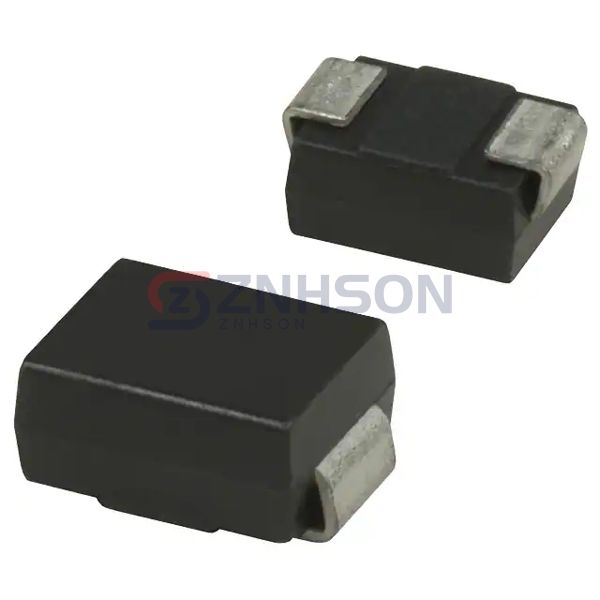

SMBJ22A
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 22VWM 35.5VC DO214AA
$0.63
Available to order
Reference Price (USD)
3,000+
$0.14080
6,000+
$0.13287
15,000+
$0.12493
30,000+
$0.11567
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the SMBJ22A TVS diode from Taiwan Semiconductor Corporation, a key component for effective circuit protection. This diode features low clamping voltage and high energy dissipation, making it suitable for sensitive applications. TVS diodes are widely employed in automotive electronics, industrial controls, and telecommunications. They provide critical protection against ESD and other transient threats. For example, the SMBJ22A can defend automotive infotainment systems from voltage spikes. Taiwan Semiconductor Corporation is your trusted source for high-quality TVS diodes that ensure device longevity and performance.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 16.9A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
