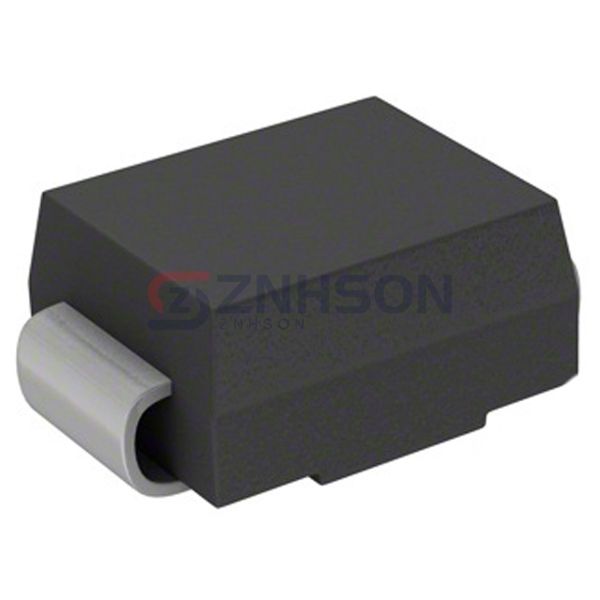

SMBJ22CA/TR7
YAGEO
YAGEO
SMBJ, DO-214AA, 22V, 35.5V, REEL
$0.07
Available to order
Reference Price (USD)
1+
$0.07241
500+
$0.0716859
1000+
$0.0709618
1500+
$0.0702377
2000+
$0.0695136
2500+
$0.0687895
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the SMBJ22CA/TR7 TVS diode from YAGEO, a key component for effective circuit protection. This diode features low clamping voltage and high energy dissipation, making it suitable for sensitive applications. TVS diodes are widely employed in automotive electronics, industrial controls, and telecommunications. They provide critical protection against ESD and other transient threats. For example, the SMBJ22CA/TR7 can defend automotive infotainment systems from voltage spikes. YAGEO is your trusted source for high-quality TVS diodes that ensure device longevity and performance.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 16.9A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
