SMBJ70CAHE3_A/H
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
TVS DIODE 70VWM 113VC DO214AA
$0.26
Available to order
Reference Price (USD)
1+
$0.25575
500+
$0.2531925
1000+
$0.250635
1500+
$0.2480775
2000+
$0.24552
2500+
$0.2429625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMBJ70CAHE3_A/H by Vishay General Semiconductor - Diodes Division is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the SMBJ70CAHE3_A/H can secure CAN bus lines in vehicles against voltage spikes. Rely on Vishay General Semiconductor - Diodes Division for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 70V
- Voltage - Breakdown (Min): 77.8V
- Voltage - Clamping (Max) @ Ipp: 113V
- Current - Peak Pulse (10/1000µs): 5.3A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMBJ)
Related Products
NTE Electronics, Inc
NTE4975
Microchip Technology
M15KP60CAE3
Taiwan Semiconductor Corporation
1.5KE62AH
Littelfuse Inc.
AK15-076C
Micro Commercial Co
P6KE8.2CA-TP
Panjit International Inc.
P4KE36AS_AY_00001
Vishay General Semiconductor - Diodes Division
SMCG10AHE3/57T
Microchip Technology
MRT100KP100A

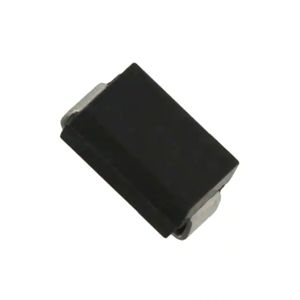

Taiwan Semiconductor Corporation
