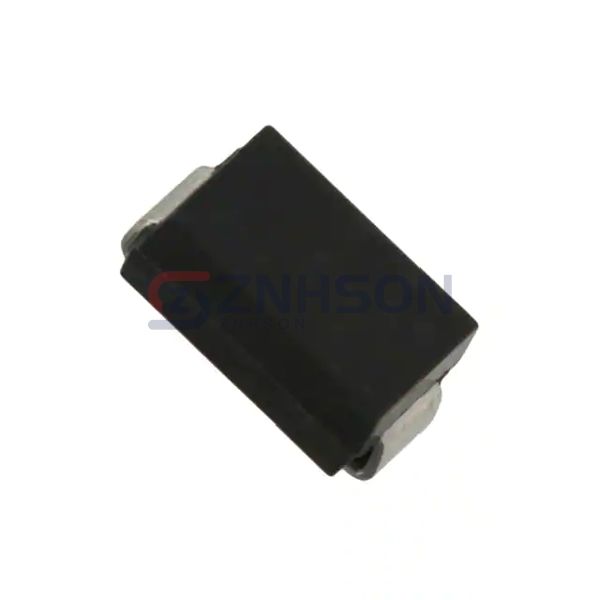

SMBJ85AH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 85VWM 137VC DO214AA
$0.16
Available to order
Reference Price (USD)
1+
$0.16078
500+
$0.1591722
1000+
$0.1575644
1500+
$0.1559566
2000+
$0.1543488
2500+
$0.152741
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the SMBJ85AH TVS diode by Taiwan Semiconductor Corporation. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the SMBJ85AH are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the SMBJ85AH can shield HDMI ports in consumer electronics from voltage surges. Trust Taiwan Semiconductor Corporation's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 85V
- Voltage - Breakdown (Min): 94.4V
- Voltage - Clamping (Max) @ Ipp: 137V
- Current - Peak Pulse (10/1000µs): 4.6A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
