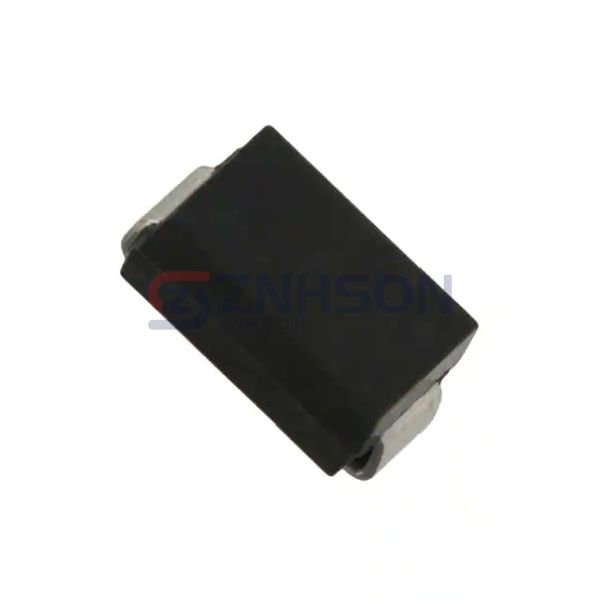

SMBJ90AH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 90VWM 146VC DO214AA
$0.22
Available to order
Reference Price (USD)
1+
$0.21883
500+
$0.2166417
1000+
$0.2144534
1500+
$0.2122651
2000+
$0.2100768
2500+
$0.2078885
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMBJ90AH from Taiwan Semiconductor Corporation is a high-performance TVS diode designed for robust circuit protection. These diodes are essential for safeguarding sensitive electronic components from voltage spikes and transient events. With fast response times and high surge capabilities, the SMBJ90AH ensures reliable performance in demanding environments. TVS diodes are widely used in telecommunications, automotive, and industrial applications. For instance, they protect data lines in routers and prevent damage from electrostatic discharge (ESD) in automotive electronics. Choose Taiwan Semiconductor Corporation's SMBJ90AH for superior protection and durability in your circuits.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 90V
- Voltage - Breakdown (Min): 100V
- Voltage - Clamping (Max) @ Ipp: 146V
- Current - Peak Pulse (10/1000µs): 4.3A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
