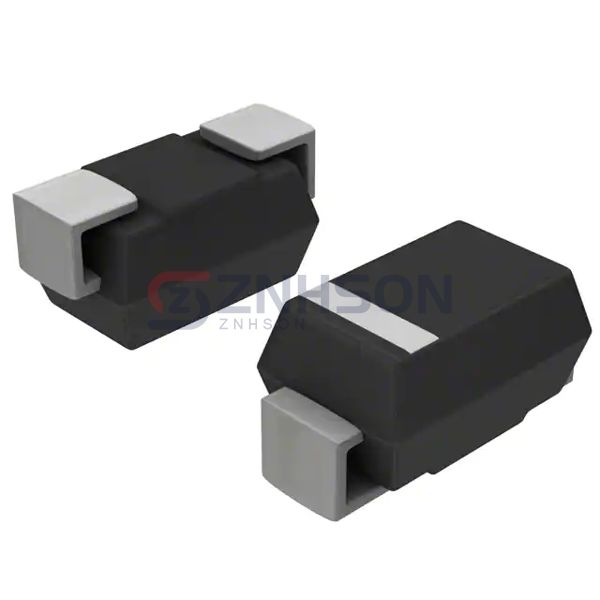

SMBJ90CAE3/TR13
Microchip Technology
Microchip Technology
TVS DIODE 90VWM 146VC SMBJ
$0.30
Available to order
Reference Price (USD)
3,000+
$0.24360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMBJ90CAE3/TR13 by Microchip Technology is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the SMBJ90CAE3/TR13 can secure CAN bus lines in vehicles against voltage spikes. Rely on Microchip Technology for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 90V
- Voltage - Breakdown (Min): 100V
- Voltage - Clamping (Max) @ Ipp: 146V
- Current - Peak Pulse (10/1000µs): 4.1A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: SMBJ (DO-214AA)
Related Products
Microchip Technology
MAP4KE12CAE3
Bourns Inc.
CD214A-T78CALF
Littelfuse Inc.
P4SMA6.8CA
Bourns Inc.
1.5SMBJ60A-H
Central Semiconductor Corp
1.5CE13A TR PBFREE
Panjit International Inc.
P4SMA33C_R1_00001
Taiwan Semiconductor Corporation

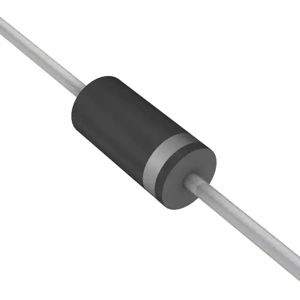

SA11AH
Microchip Technology

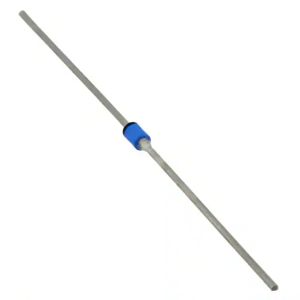

MV1N8170/TR
Eaton - Electronics Division

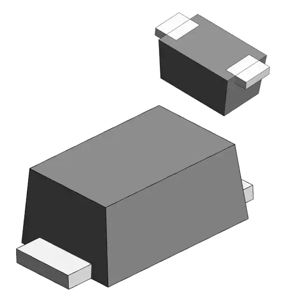

SMFE170CAH
