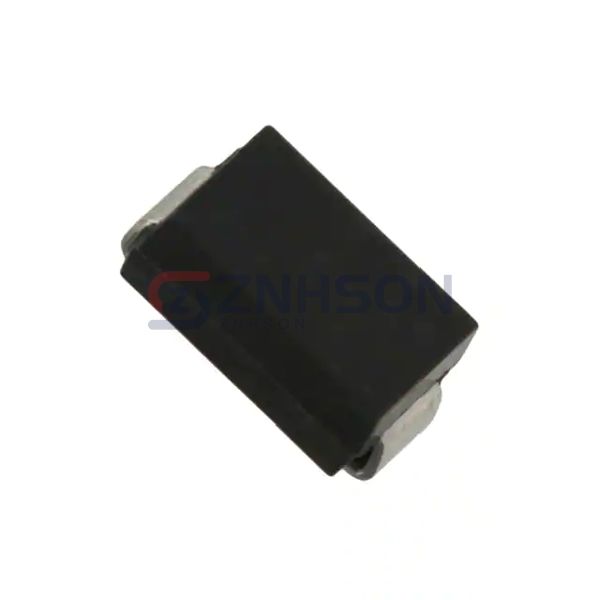

SMBJ90CAH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 90VWM 146VC DO214AA
$0.26
Available to order
Reference Price (USD)
1+
$0.26340
500+
$0.260766
1000+
$0.258132
1500+
$0.255498
2000+
$0.252864
2500+
$0.25023
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMBJ90CAH TVS diode by Taiwan Semiconductor Corporation delivers exceptional protection for your electronic circuits. Featuring high surge current handling and low leakage, this diode is ideal for precision applications. TVS diodes are widely used in automotive, industrial, and telecommunications sectors. They are particularly effective in safeguarding sensitive components from voltage transients. For instance, the SMBJ90CAH can protect GPS modules in vehicles from ESD events. Taiwan Semiconductor Corporation provides high-reliability TVS diodes that meet the stringent requirements of modern electronics.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 90V
- Voltage - Breakdown (Min): 100V
- Voltage - Clamping (Max) @ Ipp: 146V
- Current - Peak Pulse (10/1000µs): 4.3A
- Power - Peak Pulse: 600W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
