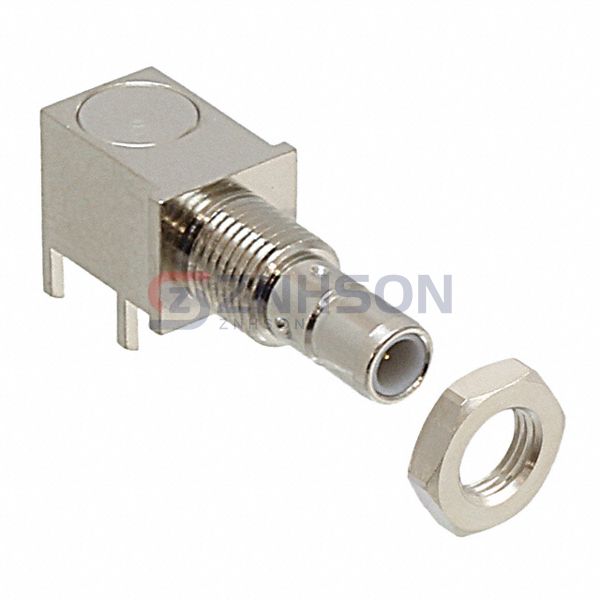

SMBW001D00
JAE Electronics
JAE Electronics
CONN SMB RCPT STR 50 OHM PCB
$18.27
Available to order
Reference Price (USD)
1+
$18.27348
500+
$18.0907452
1000+
$17.9080104
1500+
$17.7252756
2000+
$17.5425408
2500+
$17.359806
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMBW001D00 by JAE Electronics redefines performance benchmarks for Coaxial Connectors (RF). These precision connectors utilize air dielectric designs where applicable to maximize high-frequency performance. The product family offers exceptional mechanical stability with torque retention features that prevent loosening in vibration-prone environments. Specialized versions include phase-stable, hermetic, and ultra-miniature designs. Dominant applications encompass: Microwave point-to-point links Satellite payload interconnects MRI coil interfaces Spectrum monitoring systems. The SMBW001D00 stands out with its ultra-low PIM characteristics (<-160dBc), making it the connector of choice for modern multi-operator cellular infrastructure deployments.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Receptacle, Male Pin
- Contact Termination: -
- Shield Termination: -
- Impedance: 50Ohm
- Mounting Type: Through Hole
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 3 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Copper Alloy
