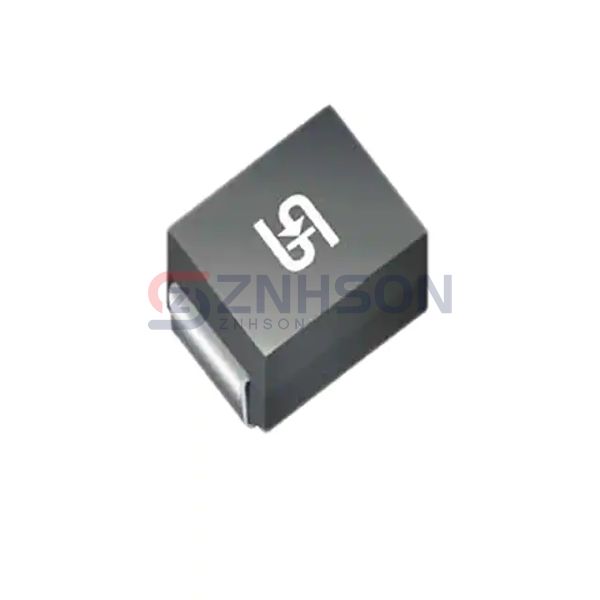

SMCJ90CAH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 90VWM 146VC DO214AB
$0.41
Available to order
Reference Price (USD)
1+
$0.40995
500+
$0.4058505
1000+
$0.401751
1500+
$0.3976515
2000+
$0.393552
2500+
$0.3894525
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the SMCJ90CAH TVS diode by Taiwan Semiconductor Corporation. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the SMCJ90CAH are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the SMCJ90CAH can shield HDMI ports in consumer electronics from voltage surges. Trust Taiwan Semiconductor Corporation's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 90V
- Voltage - Breakdown (Min): 100V
- Voltage - Clamping (Max) @ Ipp: 146V
- Current - Peak Pulse (10/1000µs): 10.7A
- Power - Peak Pulse: 1500W (1.5kW)
- Power Line Protection: No
- Applications: Automotive, Telecom
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: DO-214AB (SMC)
