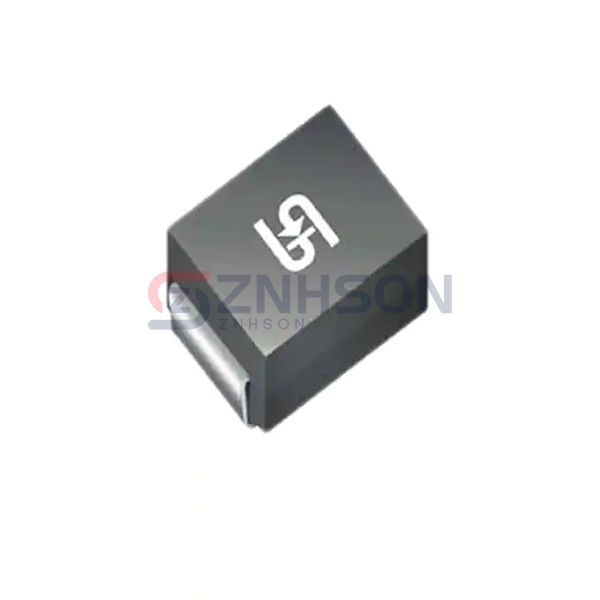

SMDJ22AH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 22VWM 35.5VC DO214AB
$0.57
Available to order
Reference Price (USD)
1+
$0.57350
500+
$0.567765
1000+
$0.56203
1500+
$0.556295
2000+
$0.55056
2500+
$0.544825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your circuit protection with the SMDJ22AH TVS diode from Taiwan Semiconductor Corporation. This diode excels in clamping transient voltages and ensuring system integrity. TVS diodes are crucial in applications ranging from consumer electronics to military hardware. They provide robust defense against voltage surges, such as those caused by lightning or switching loads. For example, the SMDJ22AH can protect military communication systems from transient interference. Taiwan Semiconductor Corporation offers top-grade TVS diodes engineered for superior performance and reliability.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 84.5A
- Power - Peak Pulse: 3000W (3kW)
- Power Line Protection: No
- Applications: Automotive, Telecom
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: DO-214AB (SMC)
