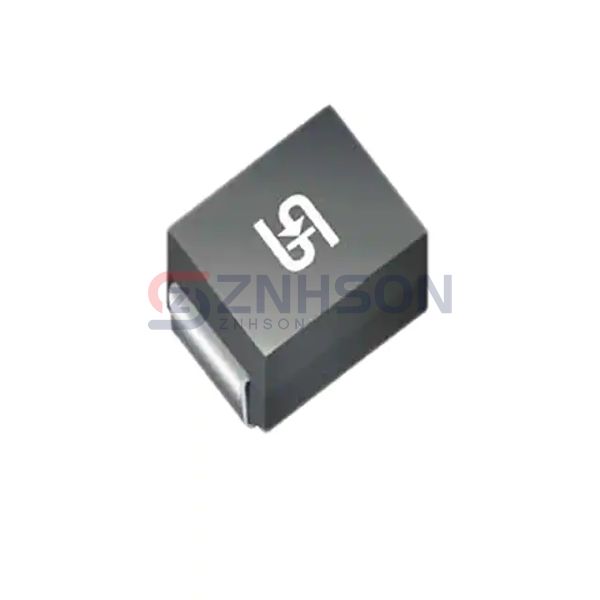

SMDJ78AH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 78VWM 126VC DO214AB
$0.57
Available to order
Reference Price (USD)
1+
$0.57350
500+
$0.567765
1000+
$0.56203
1500+
$0.556295
2000+
$0.55056
2500+
$0.544825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMDJ78AH by Taiwan Semiconductor Corporation is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the SMDJ78AH can secure CAN bus lines in vehicles against voltage spikes. Rely on Taiwan Semiconductor Corporation for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 78V
- Voltage - Breakdown (Min): 86.7V
- Voltage - Clamping (Max) @ Ipp: 126V
- Current - Peak Pulse (10/1000µs): 23.8A
- Power - Peak Pulse: 3000W (3kW)
- Power Line Protection: No
- Applications: Automotive, Telecom
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: DO-214AB (SMC)
Related Products
Nexperia USA Inc.
PTVS60VS1UTR,115
Vishay General Semiconductor - Diodes Division
P6SMB62CAHE3_A/I
Micro Commercial Co
SMBJ16CA-TP
Bourns Inc.
SMCJ12CA-Q
Comchip Technology
TV06B201JB-HF
Vishay General Semiconductor - Diodes Division
BZT03C6V8-TAP
Microchip Technology
MA1.5KE300A
onsemi
1SMA9.0AT3G
Microchip Technology

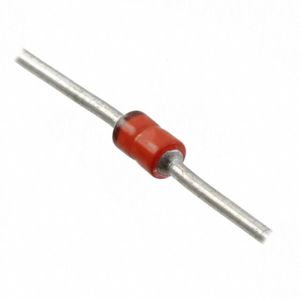

MP4KE150CA
