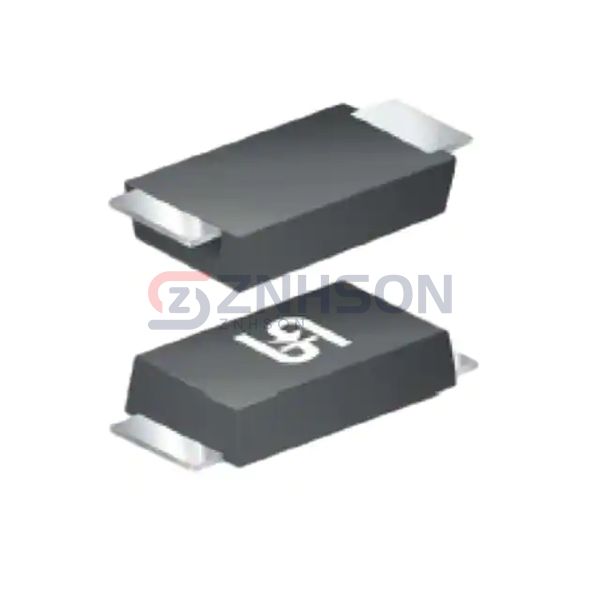

SMF22AH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 22VWM 35.5VC SOD123W
$0.10
Available to order
Reference Price (USD)
1+
$0.09616
500+
$0.0951984
1000+
$0.0942368
1500+
$0.0932752
2000+
$0.0923136
2500+
$0.091352
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the SMF22AH TVS diode by Taiwan Semiconductor Corporation. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the SMF22AH are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the SMF22AH can shield HDMI ports in consumer electronics from voltage surges. Trust Taiwan Semiconductor Corporation's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 5.6A
- Power - Peak Pulse: 200W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOD-123W
- Supplier Device Package: SOD-123W
