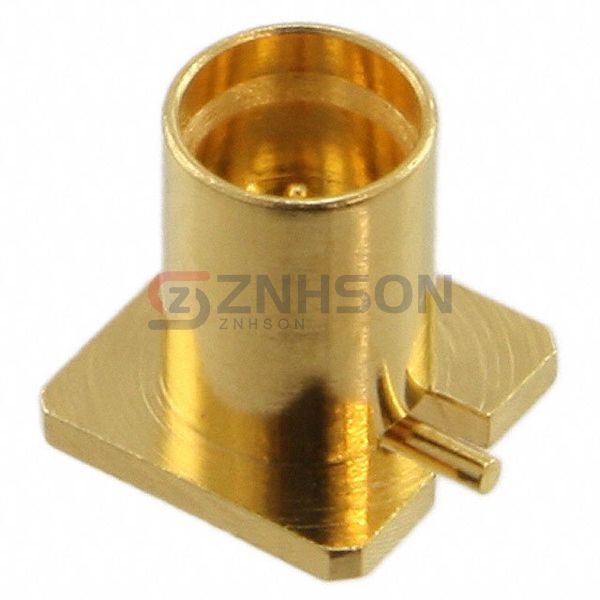

SMP-MSFD-PCR
Amphenol RF
Amphenol RF
SMP STRAIGHT PCB JACK, FULL DETE
$13.35
Available to order
Reference Price (USD)
100+
$9.97500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMP-MSFD-PCR from Amphenol RF represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The SMP-MSFD-PCR variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMP
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Surface Mount
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Features: Full Detent
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
