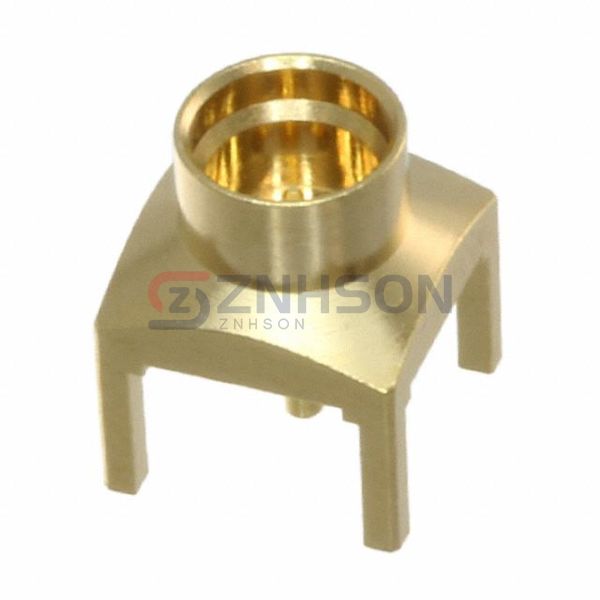

SMP-PF-P-GF-ST-TH2
Samtec Inc.
Samtec Inc.
CONN SMP PLUG STR 50 OHM PCB
$10.17
Available to order
Reference Price (USD)
1+
$8.67000
10+
$8.29400
25+
$7.54000
50+
$7.16300
200+
$6.97450
400+
$6.22050
600+
$5.84350
1,000+
$5.16490
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMP-PF-P-GF-ST-TH2 from Samtec Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The SMP-PF-P-GF-ST-TH2 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMP
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: -
- Number of Ports: 1
- Features: Full Detent
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
