SMS12RE4S6
Souriau-Sunbank by Eaton
Souriau-Sunbank by Eaton
CONN HEADER VERT 12POS 5.08MM
$12.52
Available to order
Reference Price (USD)
1+
$10.07000
10+
$9.63600
100+
$8.10300
500+
$6.78900
1,000+
$6.00060
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

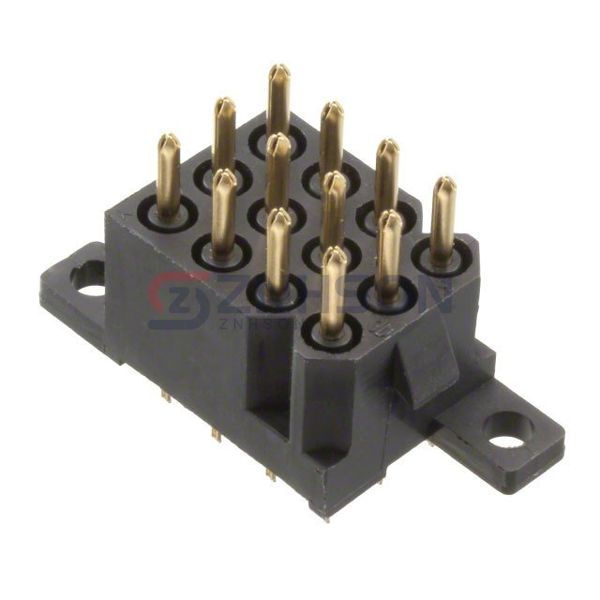

The SMS12RE4S6 by Souriau-Sunbank by Eaton is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Souriau-Sunbank by Eaton delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.200" (5.08mm)
- Number of Positions: 12
- Number of Rows: 4
- Row Spacing - Mating: 0.200" (5.08mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.280" (7.11mm)
- Contact Length - Post: 0.173" (4.40mm)
- Overall Contact Length: 0.972" (24.70mm)
- Insulation Height: 0.520" (13.20mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 16.0µin (0.41µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyester, Glass Filled
- Features: Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: IP40
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 5A
- Voltage Rating: -
