SMZJ3801BHM3_A/H
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 33V 1.5W DO214AA
$0.18
Available to order
Reference Price (USD)
1+
$0.18150
500+
$0.179685
1000+
$0.17787
1500+
$0.176055
2000+
$0.17424
2500+
$0.172425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SMZJ3801BHM3_A/H by Vishay General Semiconductor - Diodes Division is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the SMZJ3801BHM3_A/H is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 33 V
- Tolerance: ±5%
- Power - Max: 1.5 W
- Impedance (Max) (Zzt): 33 Ohms
- Current - Reverse Leakage @ Vr: 5 µA @ 25.1 V
- Voltage - Forward (Vf) (Max) @ If: -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: DO-214AA (SMB)
Related Products
Renesas Electronics America Inc
RD6.8E-T4-AZ
Central Semiconductor Corp
CZ5353B TR PBFREE
Microchip Technology
JANTX1N5530BUR-1/TR
Renesas Electronics America Inc
RD20E-TB-AZ
Nexperia USA Inc.
PZU18B2L,315
MACOM Technology Solutions
JANTX1N4103UR-1
Microchip Technology
JANTX1N752A-1
Microchip Technology
1N5734B/TR

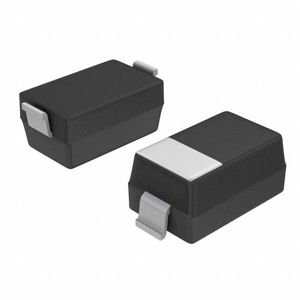

onsemi
