SN7438NSR
Texas Instruments
Texas Instruments

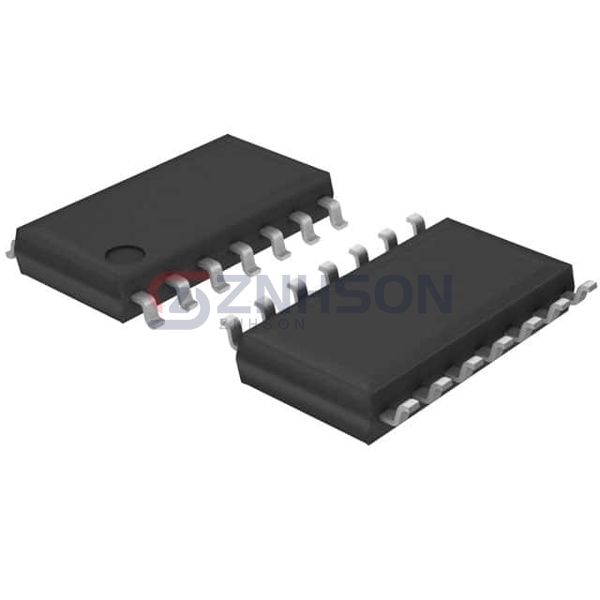

IC GATE NAND OPEN 4CH 2-IN 14SOP
$0.98
Available to order
Reference Price (USD)
2,000+
$0.75465
6,000+
$0.72670
10,000+
$0.69875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your digital designs with Texas Instruments's SN7438NSR, a premium Logic - Gates and Inverters solution. This IC features ultra-low power consumption (typical ICC < 1 A) without sacrificing speed, making it ideal for battery-powered devices. The robust design includes overvoltage tolerance on inputs and power-off protection. Application areas include sensor interfaces, motor control systems, and wireless communication modules. Specific implementations might involve smart meter designs, HVAC control boards, or automotive infotainment systems. With Texas Instruments's reputation for quality, the SN7438NSR ensures reliable operation across commercial, industrial, and military temperature ranges.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: Open Collector
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Max): 8.5 mA
- Current - Output High, Low: -, 48mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 22ns @ 5V, 45pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SO
- Package / Case: 14-SOIC (0.209", 5.30mm Width)
