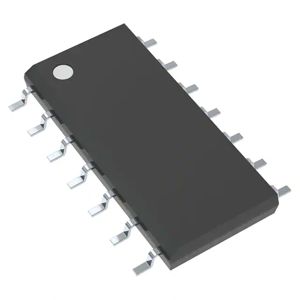

SN74AHC02PW
Texas Instruments
Texas Instruments
IC GATE NOR 4CH 2-INP 14TSSOP
$0.67
Available to order
Reference Price (USD)
1+
$0.41000
10+
$0.33400
90+
$0.30533
180+
$0.22722
540+
$0.17041
1,080+
$0.12780
2,520+
$0.11715
5,040+
$0.11005
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's SN74AHC02PW exemplifies innovation in Logic - Gates and Inverters technology. This high-speed CMOS logic IC combines multiple gate functions with exceptional noise margin characteristics. The device's wide operating voltage range (2V to 6V) accommodates diverse design requirements while maintaining consistent performance. Common uses include signal conditioning in medical devices, encoding/decoding circuits in security systems, and interface logic in automotive electronics. The SN74AHC02PW is particularly valuable in applications requiring precise timing control, such as industrial timers, digital clocks, and microcontroller reset circuits. Its industry-standard package options ensure easy PCB layout and manufacturing compatibility.
Specifications
- Product Status: Active
- Logic Type: NOR Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 2V ~ 5.5V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 8mA, 8mA
- Logic Level - Low: 0.5V ~ 1.65V
- Logic Level - High: 1.5V ~ 3.85V
- Max Propagation Delay @ V, Max CL: 8.5ns @ 5V, 50pF
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-TSSOP
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
